Description:
Brand name:Eachine E010c

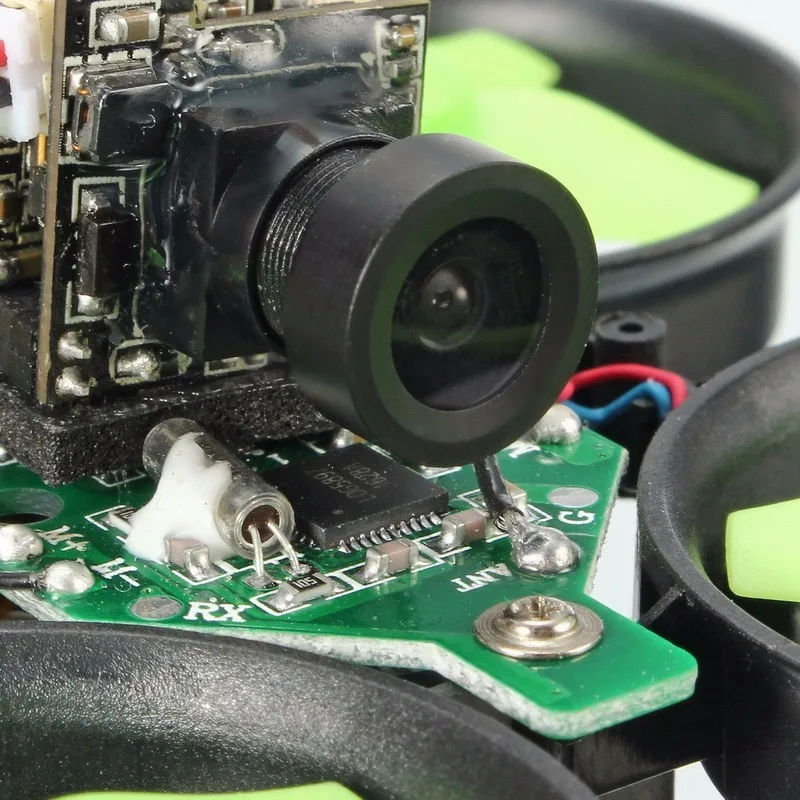

| 800TVL 40CH 25MW VTX 1/3 “CMOS FPV Camera | ||
| Camera: | Sensor: | 1/3 “CMOS |
| Clarity: | M7 800TVL camera | |
| View Angle: | 150° FOV horizontal view angle 170° DFOV opposite view angle |
|
| Signal system: | NTSC/PAL (one-button switch) | |
| Power consumption: | 380mA@ 3.7V | |
| Operating voltage: | 3.6-5.5V | |
| Lens mirror diameter: | 2.1mm IR coated FOV150(Level) | |
| Transmitter: | Supporting video system: | NTSC/PAL |
| Output impedance: | 75 Ohm | |
| Operating signal intensity: | 23~24dBm | |
| Output power: | 25mW | |
| Wireless channel: | 40CH | |
| Operating voltage: | 3.6V~5.5V | |
| Current: |
100mA
|
|
| Sound carrier: | 6.5MHz | |
| Transmit Frequency Table: | band- A : | 5865,5845,5825,5805,5785,5765,5745,5725 |
| band- B : | 5733,5752,5771,5790,5809,5828,5847,5866 | |
| band- E : | 5705,5685,5665,5645,5885,5905,5925,5945 | |
| band- F : | 5740,5760,5780,5800,5820,5840,5860,5880 | |
| band- R : | 5658,5695,5732,5769,5806,5843,5880,5917 | |
| Weight: | 3.8g | |
| Size: | 26x20x18mm (without antenna) | |
| Function: | 1.Camerapicture comparable to CCD | |
| 2.True wideangle lens 150° FOV Horizontal viewing angle 170° DFOV diagonal viewing angle | ||
| 3.Ultra-low power, ultra-lightweight, extremely suitable for smaller aircraft | ||
| 4.Turn to the R channel,ABEF 4 indicator lights bright,can choose1.2.3.4.5.6.7.8 | ||
